Reptile-4: The Hardware Design

Reptile-4 FSM

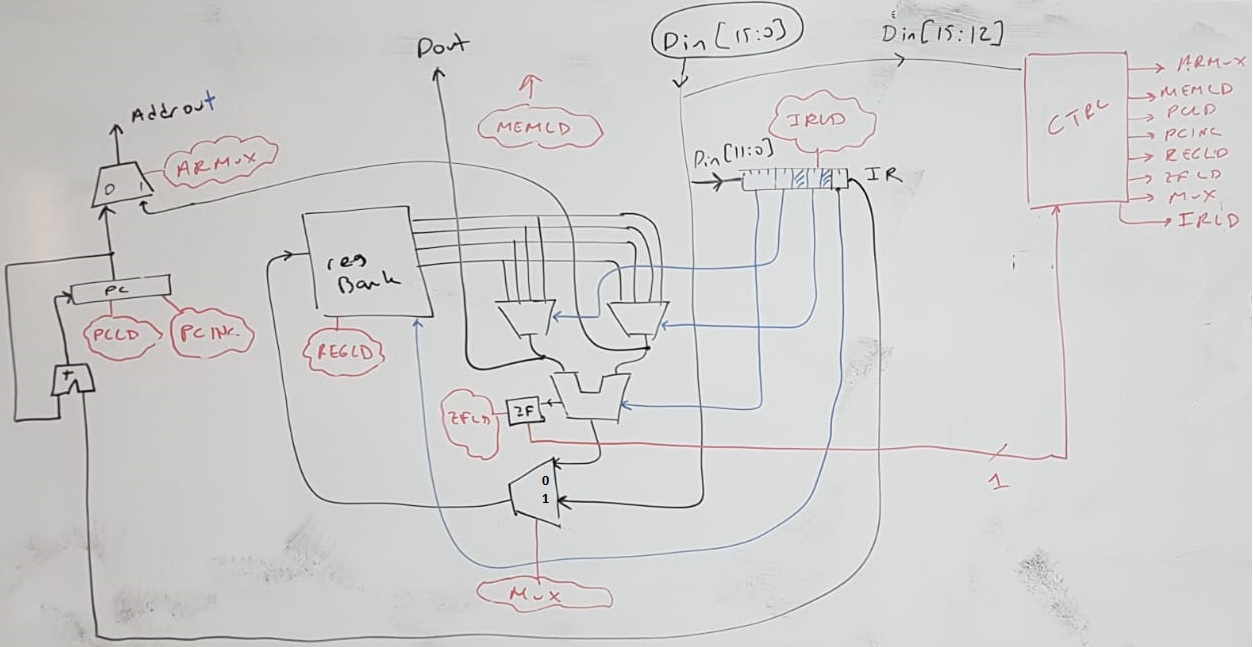

Reptile-4 Hardware

Reptile memory connection

Reptile-4 FSM with Control Signals

Reptile Control Unit

We must have as many lines as the number of “balls” plus one line for JZ.

Each line contains as many bits as control signals plus one bit for Fetch.

The complete circuit for the control unit of Reptile is shown below. As can be seen, it is almost identical with the control unit of Frog. The only difference is the part drawn in red in the diagram below, which handles the conditional jumps, ie, the JZ instructions.

Hardware Design of Reptile Control Unit

Microcode

Reptile in System Verilog

module reptile (
		input clk,
		input [15:0] data_in,
		output logic [15:0] data_out,
		output logic [11:0] address_out,
		output logic memwt
);

logic [11:0] pc, ir;   //program counter, instruction register
logic zeroflag;        //zero flag register
logic [3:0]  state;          //FSM
logic [15:0] regbank [3:0];  //registers
logic [15:0] alu_result;     //output for result
logic        zero_result;            //zeroflag value


     localparam   FETCH=4'b0000,
                  LDI=4'b0001,
                  LD=4'b0010,
                  ST=4'b0011,
                  JZ=4'b0100,
                  JMP=4'b0101,
                  ALU=4'b0111;



    always_ff @(posedge clk)
        case(state)

            FETCH:
            begin
                if ( data_in[15:12]==JZ)
                    if (zeroflag)
                        state <= JMP;
                    else
                        state <= FETCH;
                else
                    state <= data_in[15:12];
                ir<=data_in[11:0];
                pc<=pc+1; //increment program counter
            end

            LDI:
            begin
                regbank[ ir[1:0] ] <= data_in;
                pc<=pc+1;
                state <= FETCH;
            end

             LD:
                begin
                    regbank[ ir[1:0] ] <= data_in;
                    state <= FETCH;
                end

            ST:
                begin
                    state <= FETCH;
                end

            JMP:
                begin
                    pc <= pc+ir;
                    state <= FETCH;
                end

            ALU:
                begin
                    regbank[ir[2:0]] <= alu_result;
                    zeroflag <= zero_result;
                    state <= FETCH;
                end

        endcase



    always_comb
        case (state)
            LD:      address_out = regbank[ir[4:3]][11:0];
            ST:      address_out = regbank[ir[4:3]][11:0];
            default: address_out = pc;
         endcase

    assign memwt=(state==ST);

    assign data_out = regbank[ ir[7:6] ];

    always_comb
        case (ir[11:8])
            4'h0: alu_result = regbank[ir[7:6]]+regbank[ir[4:3]];
            4'h1: alu_result = regbank[ir[7:6]]-regbank[ir[4:3]];
            4'h2: alu_result = regbank[ir[7:6]]&regbank[ir[4:3]];
            4'h3: alu_result = regbank[ir[7:6]]|regbank[ir[4:3]];
            4'h4: alu_result = regbank[ir[7:6]]^regbank[ir[4:3]];
            3'h5: alu_result = !regbank[ir[4:3]];
            3'h6: alu_result = regbank[ir[4:3]];
            3'h7: alu_result = regbank[ir[4:3]]+1'h1;
            3'h8: alu_result = regbank[ir[4:3]]-1'h1;
            default: alu_result=16'h0000;
        endcase

    assign zero_result = ~|alu_result;


    initial begin;
            state=FETCH;
            pc = 0;
            end
endmodule





Problems

1. Add an overflow flag into hardware. How you should change the instruction set to take advantage of this new flag?
2. Add address offset to load and store instructions.
3. Create conditional jump instructions for many different conditions, ie, not only JZ but JNZ, JEQ, JGT etc.
4. Increase memory size to 64K while keeping the data size 16 bits. Which instructions will change?
5. Add a monitor which shows the address and PC at each instruction.
